3-D Printing: Technology May Bring New Industrial Revolution

3-D printing technology, used industrially for the last few decades, is poised to break into the mass market. Its endless and swiftly developing possibilities -- from entrepreneurial manufacturing to the potential sculpting of human organs -- could become the next industrial revolution.

An electron microscope photo showing a nano-scale Formula 1 racing car.

When the TV series Star Trek first brought the starship Enterprise into our living rooms, the concept of a replicator was pure science fiction, a fantastical utopian vision we might experience one day centuries in the future. Replicators, something of a mixture between computer and miniature factory, were capable of creating food and replacement parts from next to nothing. They were highly practical devices, since Captain Kirk couldn't exactly take along a lot of supplies for his journeys through outer space. That futuristic vision, though, has receded far into the past -- overtaken by the present.

The real-world replicator-like technology poised to revolutionize the world is known as 3-D printing, though that term is misleading, since the process has little to do with printing. Three-dimensional printers can be as small as a suitcase or as large as a telephone booth, depending on the object they are meant to faithfully replicate from a 3-D computer blueprint. Inside the machine, the product is assembled by stacking extremely thin layers of material on top of one another, sort of like reassembling an apple that has been cut into super-fine slices.
Many different technological routes can be taken to reach the same goal. In one variation, nozzles spray liquid material into layers. Another method, which produces even better results, aims laser beams at finely powdered material, causing the grains to fuse together at precisely the spot where the beam hits. All 3-D printing techniques, however, follow the same principle: The object grows layer by layer, each one just a few hundredths of a millimeter thick, until it acquires the desired shape. This technique can be applied to steel, plastic, titanium, aluminum and many other metals.

Assembling, screwing together, adhering, welding -- all these processes are rendered obsolete when even the most complex shapes can be produced by a single machine using this casting technique. The end result can be an artificial hip, a hearing aid, a cell phone case, customized footwear or even the Urbee, a prototype car that has been making a splash.

Engineers at the European Aeronautic Defence and Space Company (EADS) have used this technique to print out an entire bicycle that only needs added tires and a chain to be fully functional. British researchers, meanwhile, have printed a maneuverable drone with a rear-engine drive. Printed components are also used in Formula 1 racing and at NASA. Dental laboratories use 3-D printers to produce crowns, while doctors experiment with artificial heart tissue. Filmmakers also print animation models and automotive parts suppliers create replacement parts.

Three-dimensional printing technology, used industrially for the last few decades, is poised to break into the mass market. Its endless and swiftly developing possibilities -- from entrepreneurial manufacturing to the potential creation of human organs -- are likely to create a new industrial revolution. Here, a graphic of the 3-D printing technique known as "sintering."

A Slow Process

The printing of electronic components is even in the works. American corporation Xerox, for example, has developed a silver ink that functions as an electrical conductor and can be printed directly onto plastic or other materials, making it possible to integrate simple circuits into printed objects.

Given the potentially vast global impact of this new technology, it's surprising that so far only around two dozen companies dominate the market. Along with US giants 3-D Systems and Stratasys, about 10 German companies provide this technology, some of them market leaders in their respective segments, for example Eos and Concept Laser, both in the southern state of Bavaria.

Some of these German 3-D printing specialists are growing at a rate that has some industry experts hoping this nascent digital industrial age will finally see the emergence of new innovation drivers "made in Germany." German companies are seen as leaders, especially when it comes to 3-D printing of metals.

The possibilities in this field are theoretically unlimited, since in principle almost any object can be printed as long as precise digital data for it exist. Most of these printers are turned to industrial uses, massive machines that can cost €1 million or more, but there is also a growing amateur scene of hobbyists who print toy figurines, spare parts for their coffee machines or even individually designed coffee cups, working out of their basements and using printers they assemble themselves for €500 ($650).

The only limits are set by the selection of materials, the space needed for each individual printed object and one other very important factor: time. Three-dimensional printing as currently practiced is a long, slow process.

This technology is in its infancy, but the parallels to the emerging computer industry of the 1970s are hard to miss. Then, too, the first machines were clunky and their operation complicated, but their evolution happened quickly and in giant leaps.

Widespread Applications

An expert panel under US President Barack Obama sees 3-D printing as a "megatrend of the future" and the US government is putting hundreds of millions of dollars toward developing the new technology. Industrial giants including Boeing, Siemens, General Electric (GE), Samsung, Canon and Daimler are all experimenting with the related production methods.

Among the leaders in such developments is German manufacturer Eos, located in an industrial park in Krailling, a town of 8,000 near Munich. In the foyer of the company's headquarters stands a life-sized statue of the Greek goddess of victory Nike. The statue is an exact reproduction of an ancient original, down to the cracks and weathering in the material, and was produced in an Eos printer from a scan of the original museum piece.

A printed violin is also displayed in a case in the entrance area. This object's mechanical birth was about a day's work for a 3-D printer. The only extra steps necessary were to mount a few small components and strings. Music experts can hear the difference when the instrument is played. But a layperson just hears a violin.

This Bavarian high-tech company specializes in 3-D printers for industrial use, large machines that resemble oversized refrigerators or industrial ovens. Depending on their size, equipment and capabilities, these printers can cost anywhere from €150,000 to over €1 million.

The three-dimensional printing process Eos uses is known as laser sintering. Companies have been using this technique for 25 years, especially for quickly and cheaply developing prototypes and design studies, which is how Eos CEO Hans Langer first encountered the technology. A physicist who wrote his doctoral dissertation on laser technology, Langer founded Eos in 1989 and constructed his first 3-D printer for automobile manufacturer BMW, which used it to produce new car model prototypes from synthetic resin.

Other auto manufacturers, including those producing Formula 1 cars, now use the technology as well. "It's safe to assume that every auto racing team works with components from our printers," Langer says.

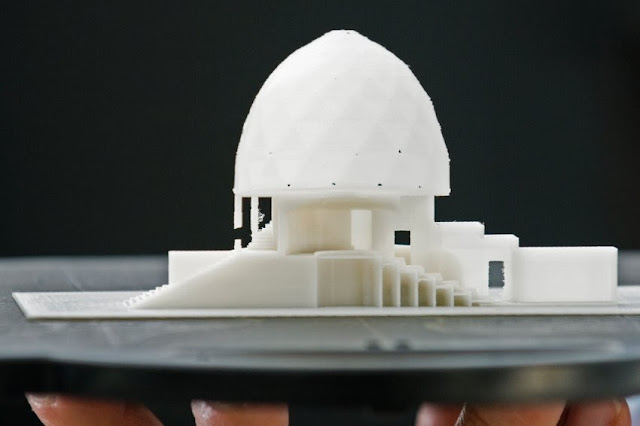

Architectural models are also frequently made via 3-D printing.

'Unlimited Potential'

Eos is now the global market leader in its field. The company's sales have doubled over the last three years, reaching €105 million ($138 million). At the moment the total sales volume of this market remains fairly modest at $1.3 billion, but if the trend continues, it will multiply rapidly. Wohlers Associates, a 3-D printing industry consulting firm, expects that number to triple by 2015, and to reach $6.5 billion by 2019.

"I absolutely believe this will come to be very important," says Jeffrey Immelt, CEO of global conglomerate GE. New York Mayor Michael Bloomberg, who made his own fortune in new technologies, calls 3-D printing "an exciting new industry with virtually unlimited potential" and one that "could completely revolutionize manufacturing." Assuming that 3-D printing technology continues to develop at the same rapid pace, it could indeed be revolutionary for a number of reasons:

Considerably fewer production steps, fewer tools needed and lower materials costs all spell enormous cost savings. With products no longer needing to be cut from the materials from which they are made, some 3-D printers require just 10 percent the amount of plastic or metal that conventional methods such as milling do.

Companies will no longer be tied to the economies of scale that make mass production necessary for reducing costs. Even small production batches can be profitable.
More innovative products can be brought onto the market, since this method makes it easy to try out new ideas cheaply.

Changing a product's design no longer means the entire assembly line must be reworked as well. This shortens product cycles considerably and makes it possible to introduce improvements more quickly.

One area in which 3-D printers show a promising future, and are already being put to use, is in the construction of replacement parts. One BMW manager couldn't find an original spare part for his old motorcycle -- so he simply had the item's design reconstructed on a computer, then printed it using an Eos device.

Another considerable advantage to applying this new technology to industrial uses is that the hollow spaces and internal struts in printed objects make them both more stable and lighter than the same products when manufactured conventionally -- a combination that is generally difficult to achieve.

"An artificial hip manufactured the traditional way is much heavier than a printed one, which weights just 200 grams (seven ounces)," says Eos head Langer.

This same factor is what makes 3-D printing so appealing for airplane manufacturers such as EADS, with its subsidiary Airbus. Langer is proud to display the design for a hinge that will weigh 60 percent less than those currently in use -- and less weight means less fuel consumption. "Sustainability is a major driver in our industry," Langer says. When designing new components on the computer, he often draws on ideas found in nature. "Birds' bones are incredibly light and incredibly stabile," he points out.

Another far more difficult application of 3-D printing currently being tested is the creation of complete fuel injector nozzles for airplane turbines, produced in a single printing process. Langer calculates that such printed nozzles would allow jet planes to fly up to 2 percent more efficiently, saving millions of euros over the lifecycle of each plane. So far, printed components have only been used inside the cabins of airplanes.

Medical Advances

Significant progress has also been made in the materials that can be used in 3-D printing, with even objects made from organic matter now possible. Scientists are working on assembling human cells in 3-D printers, composed from materials that the human body uses, such as sugar. Biologists have also been able to print veins and working heart tissue. Eventually the production of entire organs may be possible.

Pharmaceutical researchers are also experimenting with printing individually tailored medications. A computer provides the formula and the printer composes the pill from individual ingredients according to the patient's particular needs. This technique has already proven successful for simple formulations such as the painkiller ibuprofen.

The technology has long since proven its benefits when it comes to low-priced customized production in the medical field. It is significantly faster and easier, for example, to print dental prostheses than to have a dental technician shape them by hand. And these prostheses can be printed using whichever materiel the patient desires. For example, one team of surgeons printed an artificial lower jaw for a patient from titanium.

Similar progress is also occurring in the 3-D printing of movable parts. In one example, scientists at American university MIT have printed a functional clock. And Mark Little, director of global research at GE, confidently declares, "One day, we will be able to print an engine."

Staying Ahead of Asia

Some even see 3-D printing technology as an opportunity for Europe and the US to reclaim at least certain areas of industrial manufacturing from Asia. These miniature factories require both less material and fewer employees to run them, which makes the production process cheaper. One or two skilled workers are enough to run a professional-grade printer.

Financial hurdles for entrepreneurs looking to enter the market will also be much lower, since it's no longer necessary to construct entire assembly lines before production can begin. Instead, it's possible to first test innovations on a smaller scale, then increase production of those products that prove successful.

The new technology offers great opportunities for any manufacturer, but it also poses serious risks. The 3-D printing process makes it easier for inventors to enter the market, but it makes things easier for copycats as well.

What will the implications be for a German mechanical engineering company when its clients in Mexico or Vietnam no longer need to import replacement parts from Stuttgart, but instead can acquire the digital 3-D blueprint and print their own parts? What will the implications be when a computer file is all that's needed to copy WMF silverware or Gucci sunglasses? One American company has already patented a copy protection mechanism for 3-D printing, and the mass market is likely to follow.

Devices for home use have long since joined professional 3-D printers on the market. American manufacturer MakerBot opened its first store in Manhattan a few months ago, where it sells beginners' models for around $2,000. These machines, which are about the size of a crate of beer and print objects from the same plastic from which Legos are made, are certainly not nearly as highly developed or precise as the industrial devices manufactured by Eos, but they are enough to allow a hobbyist to design and produce anything from chess pieces to jewelry.

From Personalalized Products to Space

Certainly the same concerns causing sleepless nights for intellectual property experts are also giving others cause for celebration -- and allowing new business models to emerge. "This is the democratization of production," says Peter Weijmarshausen, CEO of Shapeways, the leader in 3-D printing for personalized manufacturing. "Anyone can produce their own dream product." Shapeways, which began as a project of Dutch company Philips, allows its customers either to upload their own designs to the company website or to select from various templates, and the company then manufactures the desired product using 3-D printers.

Shapeways produced 1.5 million objects for its customers this past year, including self-designed jewelry, iPhone cases, lampshades and vases. In the coming year, the company expects that number to reach 6 or 7 million, with its products made from around 30 different materials. This autumn Shapeways opened a new production facility in the New York City borough of Queens, with long rows of 3-D printers of many different types. Many of the printers are indeed "made in Germany," manufactured by Eos in Krailling.

The next big step, Weijmarshausen hopes, will be clothing produced by 3-D printers, tailored exactly to fit each customer's individual figure. "And of course shoes, custom-made for each pair of feet," he adds. Still, such consumer-designed products are likely to remain a smaller operation compared to all the technology's potential industrial applications.

Researchers in California, meanwhile, are testing out printing concrete components to be used in house construction. And NASA, the US space agency, is drawing ever closer to Captain Kirk's Star Trek utopia, using this technology to print engine components for its new Space Launch System. NASA, too, is relying on 3-D laser printing technology made in Bavaria -- the project uses systems manufactured by Concept Laser in Lichtenfels.
